Genuine OEM·Whirlpool

W10597166Replaces 2 older numbers

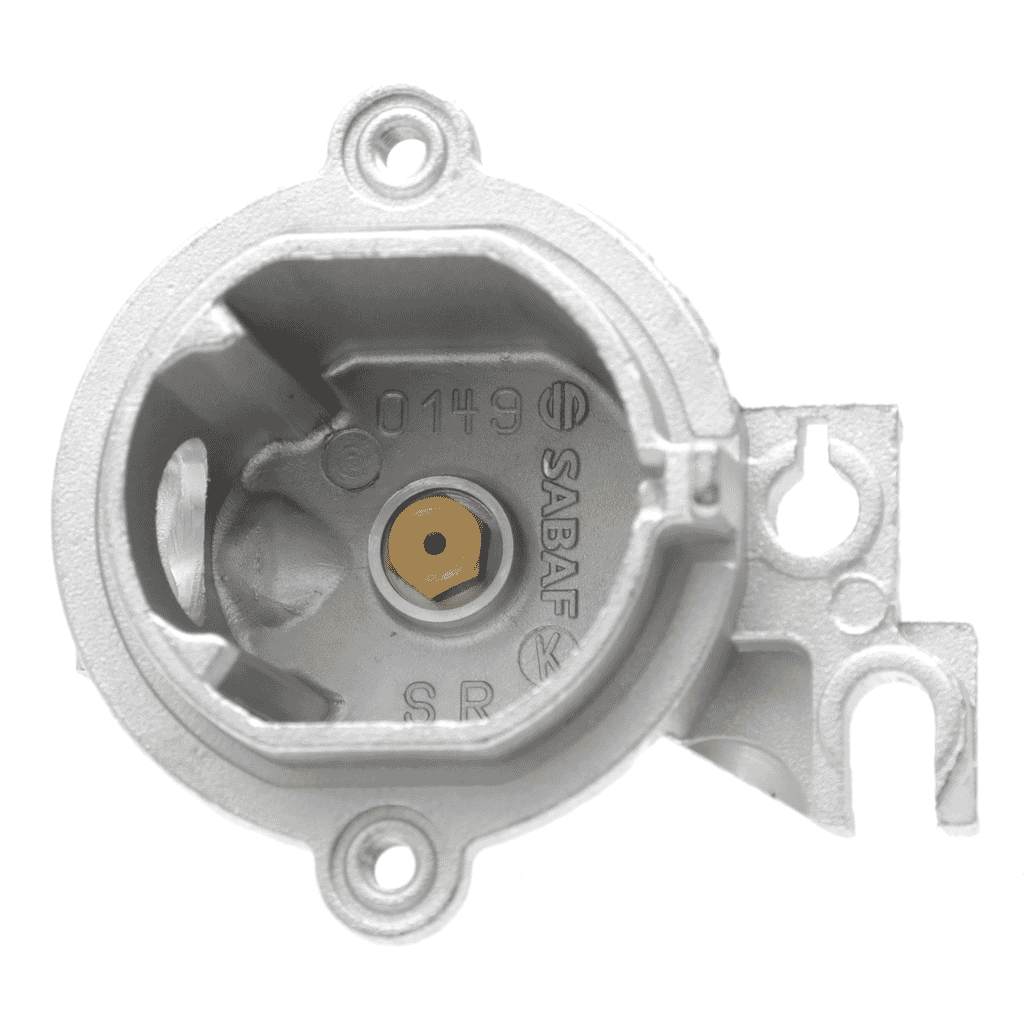

Whirlpool W10597166 Surface Burner Orifice Holder - Genuine OEM

Whirlpool W10597166 Surface Burner Orifice Holder - Genuine OEM

$26.89 USD
$26.89 USD
Sale Sold out
Shipping calculated at checkout.
In stock Ships on the next business dayOnly a few left. Write to us before you order — we will check this one, confirm it is there, and hold it for you.
  • Fit checked against the maker’s own model list
  • Genuine OEM part, one-year warranty
  • 365-day returns, unused and in the original box
  • Ships from a U.S. warehouse, tracked
Replaces and supersedes

If your old part carries any of these, this is what replaces it.

  • 3449866
  • AWP761676
Other stores list it as

Other shops sell this part under their own catalog numbers. You will not find these on the part itself — they are here so the number you searched for leads to the right part.

  • AP5949649
  • EAP10056702
  • PS10056702
  • PD00069257

Whirlpool W10597166 is a surface burner orifice holder for cooktop appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. It should read W10597166.

Shipping box

Weight and size of the parcel as it ships: 0.31 lb · 4.4881, 1.7716, 2.9527 in. These are the carton, not the part — do not measure your old part against them.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

  • One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
  • 30 day returns — unused and uninstalled, in the original box.
  • Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: 3449866, AWP761676.

Other stores list this part as: AP5949649, EAP10056702, PS10056702, PD00069257.

Models this part fits

14 models

Fits: ICS655DS00, KCGS350ESS00, KCGS350ESS05, KCGS356ESS00, KCGS356ESS05, KCGS356ESS06, MGC9536DS00, MGC9536DS05, WCG77US0HS00, WCG77US0HS05, WCG97US0DS00, WCG97US6DS00, WCG97US6HS00, WCG97US6HS05.

Also fits these brands

  • KitchenAid
  • Whirlpool
  • Maytag
View full details

Model cross reference

This part W10597166 works with all 14 models listed, all of them cooktops.

Need help finding your model number?
Model number ManufacturerAppliance type
ICS655DS00 WhirlpoolCooktop
KCGS350ESS00 WhirlpoolCooktop
KCGS350ESS05 KitchenAidCooktop
KCGS356ESS00 KitchenAidCooktop
KCGS356ESS05 WhirlpoolCooktop
KCGS356ESS06 KitchenAidCooktop
MGC9536DS00 MaytagCooktop
MGC9536DS05 MaytagCooktop
WCG77US0HS00 WhirlpoolCooktop
WCG77US0HS05 WhirlpoolCooktop
WCG97US0DS00 WhirlpoolCooktop
WCG97US6DS00 WhirlpoolCooktop
WCG97US6HS00 WhirlpoolCooktop
WCG97US6HS05 WhirlpoolCooktop
