Genuine OEM·Whirlpool

W10685631Replaces 2 older numbers

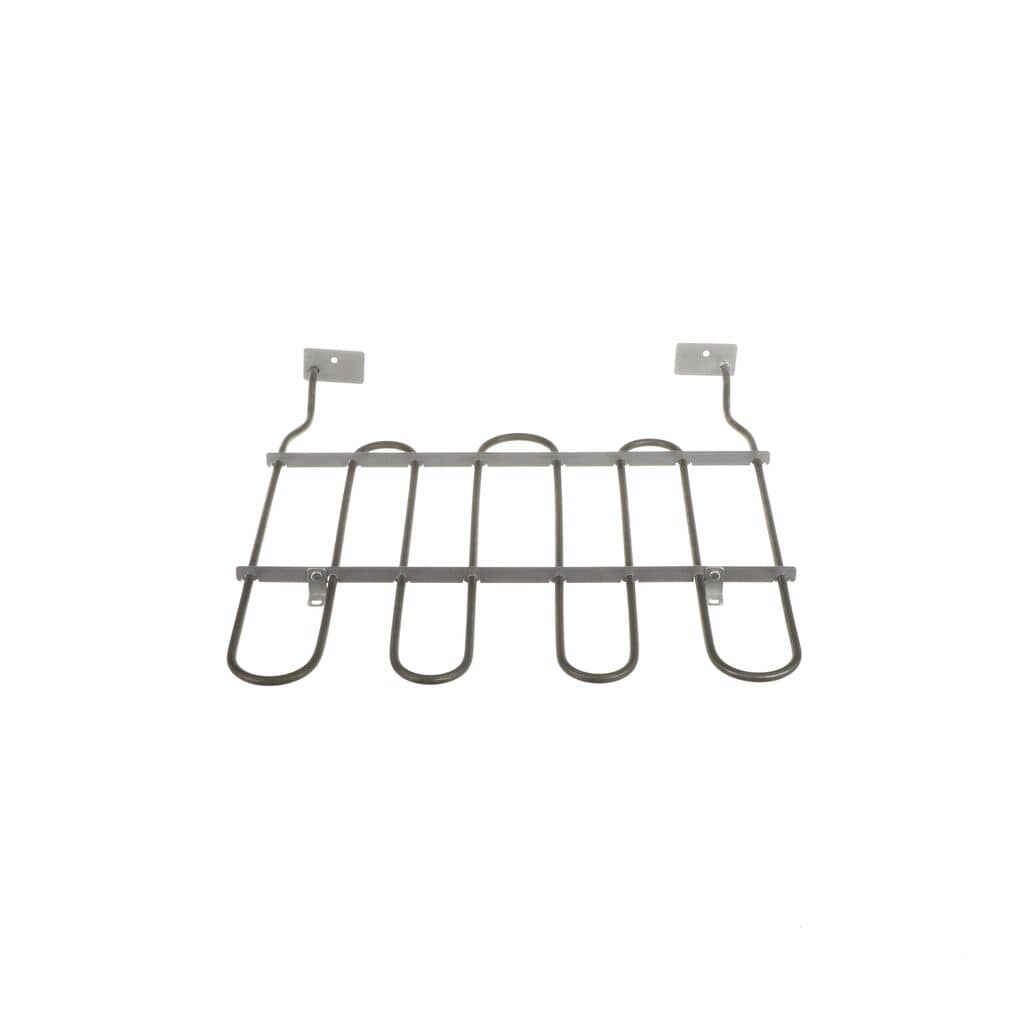

Whirlpool W10685631 Broil Element - Genuine OEM

Whirlpool W10685631 Broil Element - Genuine OEM

$72.82 USD
$72.82 USD
Sale Sold out
Shipping calculated at checkout.
In stock Ships on the next business dayOnly a few left. Write to us before you order — we will check this one, confirm it is there, and hold it for you.
  • Fit checked against the maker’s own model list
  • Genuine OEM part, one-year warranty
  • 365-day returns, unused and in the original box
  • Ships from a U.S. warehouse, tracked
Replaces and supersedes

If your old part carries any of these, this is what replaces it.

  • 4281285
  • AWP41125
Other stores list it as

Other shops sell this part under their own catalog numbers. You will not find these on the part itself — they are here so the number you searched for leads to the right part.

  • AP5982678
  • EAP11702269
  • PS11702269
  • PD00055167

Whirlpool W10685631 is a broil element for range appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. It should read W10685631.

Shipping box

Weight and size of the parcel as it ships: 1.18 lb · 18.0, 15.25, 1.4 in. These are the carton, not the part — do not measure your old part against them.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

  • One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
  • 30 day returns — unused and uninstalled, in the original box.
  • Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: 4281285, AWP41125.

Other stores list this part as: AP5982678, EAP11702269, PS11702269, PD00055167.

Models this part fits

32 models

Fits: KODC304EBL00, KODC304EBL01, KODC304ESS00, KODC304ESS01, KODC304EWH00, KODC304EWH01, KOSC504ESS00, KOSC504ESS01, WOD51ES4EB00, WOD51ES4EB01, WOD51ES4EB02, WOD51ES4ES00, WOD51ES4ES01, WOD51ES4ES02, WOD51ES4EW00, WOD51ES4EW01, WOD51ES4EW02, WOS11EM4EB00, WOS11EM4EB01, WOS11EM4EB02, WOS11EM4EW00, WOS11EM4EW01, WOS11EM4EW02, WOS51ES4EB00, WOS51ES4EB01, WOS51ES4EB02, WOS51ES4ES00, WOS51ES4ES01, WOS51ES4ES02, WOS51ES4EW00, WOS51ES4EW01, WOS51ES4EW02.

Also fits these brands

  • Whirlpool
  • KitchenAid
View full details

Model cross reference

This part W10685631 works with all 32 models listed, all of them ranges.

Need help finding your model number?
Model number ManufacturerAppliance type
KODC304EBL00 WhirlpoolRange
KODC304EBL01 WhirlpoolRange
KODC304ESS00 WhirlpoolRange
KODC304ESS01 WhirlpoolRange
KODC304EWH00 KitchenAidRange
KODC304EWH01 WhirlpoolRange
KOSC504ESS00 KitchenAidRange
KOSC504ESS01 KitchenAidRange
WOD51ES4EB00 WhirlpoolRange
WOD51ES4EB01 WhirlpoolRange
WOD51ES4EB02 WhirlpoolRange
WOD51ES4ES00 WhirlpoolRange
WOD51ES4ES01 WhirlpoolRange
WOD51ES4ES02 WhirlpoolRange
WOD51ES4EW00 WhirlpoolRange
WOD51ES4EW01 WhirlpoolRange
WOD51ES4EW02 WhirlpoolRange
WOS11EM4EB00 WhirlpoolRange
WOS11EM4EB01 WhirlpoolRange
WOS11EM4EB02 WhirlpoolRange
WOS11EM4EW00 WhirlpoolRange
WOS11EM4EW01 WhirlpoolRange
WOS11EM4EW02 WhirlpoolRange
WOS51ES4EB00 WhirlpoolRange
WOS51ES4EB01 WhirlpoolRange
WOS51ES4EB02 WhirlpoolRange
WOS51ES4ES00 WhirlpoolRange
WOS51ES4ES01 WhirlpoolRange
WOS51ES4ES02 WhirlpoolRange
WOS51ES4EW00 WhirlpoolRange
WOS51ES4EW01 WhirlpoolRange
WOS51ES4EW02 WhirlpoolRange
