Genuine OEM·Whirlpool

W11134549Replaces 2 older numbers

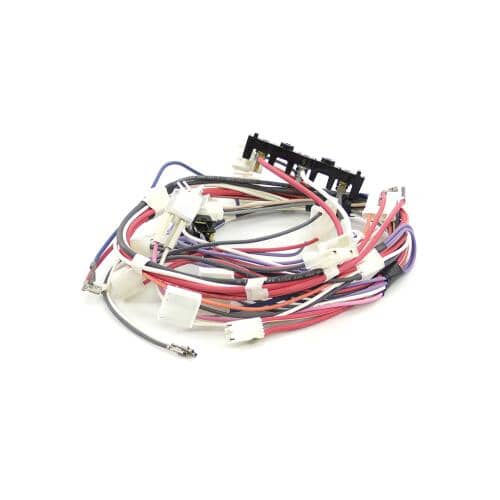

Whirlpool W11134549 Range Wire Harness - Genuine OEM

Name: Whirlpool W11134549 Range Wire Harness - Genuine OEM
Brand: Whirlpool
SKU: W11134549
Price: 124.25 USD
Availability: OutOfStock

Whirlpool W11134549 Range Wire Harness - Genuine OEM

$124.25 USD

~~$155.20 USD~~ $124.25 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock See the replacement number

Fit checked against the maker’s own model list
Genuine OEM part, one-year warranty
365-day returns, unopened and in the original box
Ships from a U.S. warehouse, tracked

Also known by these numbers

If your old part carries any of these, this is the one you want.

W10629304
W11218704

Whirlpool W11134549 is a wire harness for range appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. If it says W11134549, or any of the 2 older numbers listed under Compatible parts below, this is the replacement. Every one of them is discontinued and every one leads here.

Shipping box

Weight and size of the parcel as it ships: 1.20 lb · 12.5, 3.5, 3.0 in. These are the carton, not the part — do not measure your old part against them.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
30 day returns — unused and uninstalled, in the original box.
Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: W10629304, W11218704.

Models this part fits

22 models

Fits: MER8700DB1, MER8700DE1, MER8700DS2, WFE540H0AB1, WFE540H0AE1, WFE540H0AH1, WFE540H0AS1, WFE540H0AW1, WFE540H0EB0, WFE540H0EB1, WFE540H0EE0, WFE540H0EE1, WFE540H0EH0, WFE540H0EH1, WFE540H0ES0, WFE540H0ES1, WFE540H0ES2, WFE540H0EW0, WFE540H0EW1, MER8700DH1, MER8700DS1, MER8700DW1.

Also fits these brands

Whirlpool
Maytag

View full details

Model cross reference

This part W11134549 works with all 22 models listed, all of them ranges.

Does this fit my appliance? Need help finding your model number?

Model number	Manufacturer	Appliance type
MER8700DB1	Maytag	Range
MER8700DE1	Maytag	Range
MER8700DH1	Maytag	Range
MER8700DS1	Maytag	Range
MER8700DS2	Maytag	Range
MER8700DW1	Maytag	Range
WFE540H0AB1	Whirlpool	Range
WFE540H0AE1	Whirlpool	Range
WFE540H0AH1	Whirlpool	Range
WFE540H0AS1	Whirlpool	Range
WFE540H0AW1	Whirlpool	Range
WFE540H0EB0	Whirlpool	Range
WFE540H0EB1	Whirlpool	Range
WFE540H0EE0	Whirlpool	Range
WFE540H0EE1	Whirlpool	Range
WFE540H0EH0	Whirlpool	Range
WFE540H0EH1	Whirlpool	Range
WFE540H0ES0	Whirlpool	Range
WFE540H0ES1	Whirlpool	Range
WFE540H0ES2	Whirlpool	Range
WFE540H0EW0	Whirlpool	Range
WFE540H0EW1	Whirlpool	Range
