Genuine OEM·Whirlpool

W11174745Replaces 1 older number

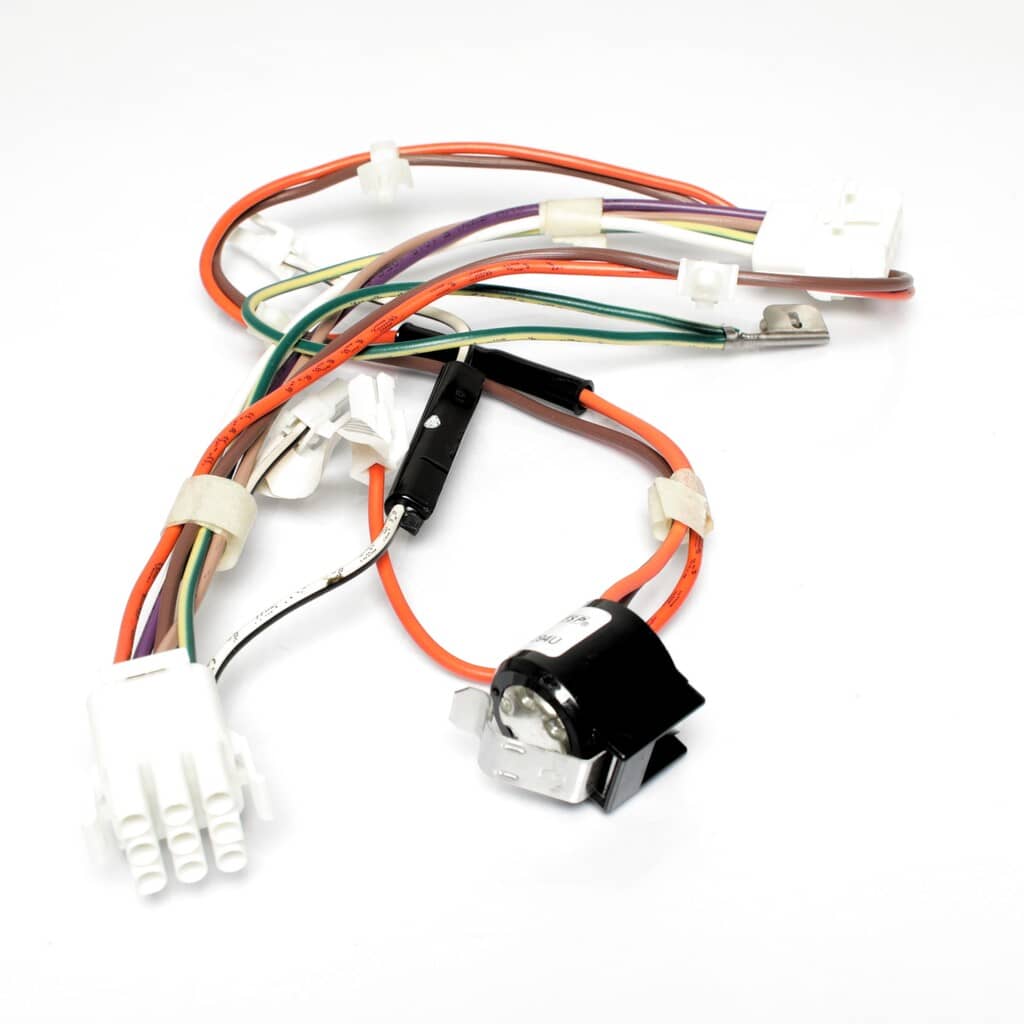

Whirlpool W11174745 Refrigerator Wire Harness - Genuine OEM

Whirlpool W11174745 Refrigerator Wire Harness - Genuine OEM

$36.65 USD
$65.87 USD $36.65 USD
Sale Sold out
Shipping calculated at checkout.
Available to order Ships on the next business day
  • Fit checked against the maker’s own model list
  • Genuine OEM part, one-year warranty
  • 365-day returns, unused and in the original box
  • Ships from a U.S. warehouse, tracked
Replaces and supersedes

If your old part carries any of these, this is what replaces it.

  • AWP206531
Other stores list it as

Other shops sell this part under their own catalog numbers. You will not find these on the part itself — they are here so the number you searched for leads to the right part.

  • AP6893169
  • EAP12727851
  • PS12727851
  • PD00075845

Whirlpool W11174745 is a wire harness for refrigerator appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. It should read W11174745.

Shipping box

Weight and size of the parcel as it ships: 0.18 lb · 14.0, 1.5, 1.0 in. These are the carton, not the part — do not measure your old part against them.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

  • One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
  • 30 day returns — unused and uninstalled, in the original box.
  • Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: AWP206531.

Other stores list this part as: AP6893169, EAP12727851, PS12727851, PD00075845.

Models this part fits

39 models

Fits: IX6HHEXDSM03, JFC2089BEM03, JFC2089BEM04, JFC2089BEP03, KRFC300EBL03, KRFC300EBS01, KRFC300EBS02, KRFC300ESS03, KRFC300ESS04, KRFC300EWH03, KRFC300EWH04, KRFF302EBS00, KRFF302EBS01, KRFF302EBS02, KRFF302ESS02, KRFF302ESS03, KRFF302EWH02, KRFF302EWH03, KRFF305EBS01, KRFF305EBS02, KRFF305EBS03, KRFF305ESS02, KRFF305ESS03, KRFF305ESS04, KRFF305EWH02, KRFF305EWH03, KRFF305EWH04, MFC2062FEZ03, MFC2062FEZ04, MFC2062FEZ05, WRF540CWHB01, WRF540CWHB02, WRF540CWHV01, WRF540CWHV02, WRF540CWHW01, WRF540CWHW02, WRF540CWHZ02, WRF540CWHZ03, WRF540CWHZ04.

Also fits these brands

  • Whirlpool
  • KitchenAid
  • Maytag
  • JennAir
  • Ikea
View full details

Model cross reference

This part W11174745 works with all 39 models listed, all of them refrigerators.

Need help finding your model number?
Model number ManufacturerAppliance type
IX6HHEXDSM03 IkeaRefrigerator
JFC2089BEM03 WhirlpoolRefrigerator
JFC2089BEM04 JennAirRefrigerator
JFC2089BEP03 WhirlpoolRefrigerator
KRFC300EBL03 KitchenAidRefrigerator
KRFC300EBS01 KitchenAidRefrigerator
KRFC300EBS02 WhirlpoolRefrigerator
KRFC300ESS03 KitchenAidRefrigerator
KRFC300ESS04 WhirlpoolRefrigerator
KRFC300EWH03 KitchenAidRefrigerator
KRFC300EWH04 KitchenAidRefrigerator
KRFF302EBS00 KitchenAidRefrigerator
KRFF302EBS01 WhirlpoolRefrigerator
KRFF302EBS02 KitchenAidRefrigerator
KRFF302ESS02 WhirlpoolRefrigerator
KRFF302ESS03 KitchenAidRefrigerator
KRFF302EWH02 WhirlpoolRefrigerator
KRFF302EWH03 WhirlpoolRefrigerator
KRFF305EBS01 WhirlpoolRefrigerator
KRFF305EBS02 KitchenAidRefrigerator
KRFF305EBS03 WhirlpoolRefrigerator
KRFF305ESS02 KitchenAidRefrigerator
KRFF305ESS03 KitchenAidRefrigerator
KRFF305ESS04 WhirlpoolRefrigerator
KRFF305EWH02 KitchenAidRefrigerator
KRFF305EWH03 WhirlpoolRefrigerator
KRFF305EWH04 WhirlpoolRefrigerator
MFC2062FEZ03 MaytagRefrigerator
MFC2062FEZ04 MaytagRefrigerator
MFC2062FEZ05 WhirlpoolRefrigerator
WRF540CWHB01 WhirlpoolRefrigerator
WRF540CWHB02 WhirlpoolRefrigerator
WRF540CWHV01 WhirlpoolRefrigerator
WRF540CWHV02 WhirlpoolRefrigerator
WRF540CWHW01 WhirlpoolRefrigerator
WRF540CWHW02 WhirlpoolRefrigerator
WRF540CWHZ02 WhirlpoolRefrigerator
WRF540CWHZ03 WhirlpoolRefrigerator
WRF540CWHZ04 WhirlpoolRefrigerator
