Genuine OEM·Whirlpool

W11190477Replaces 3 older numbers

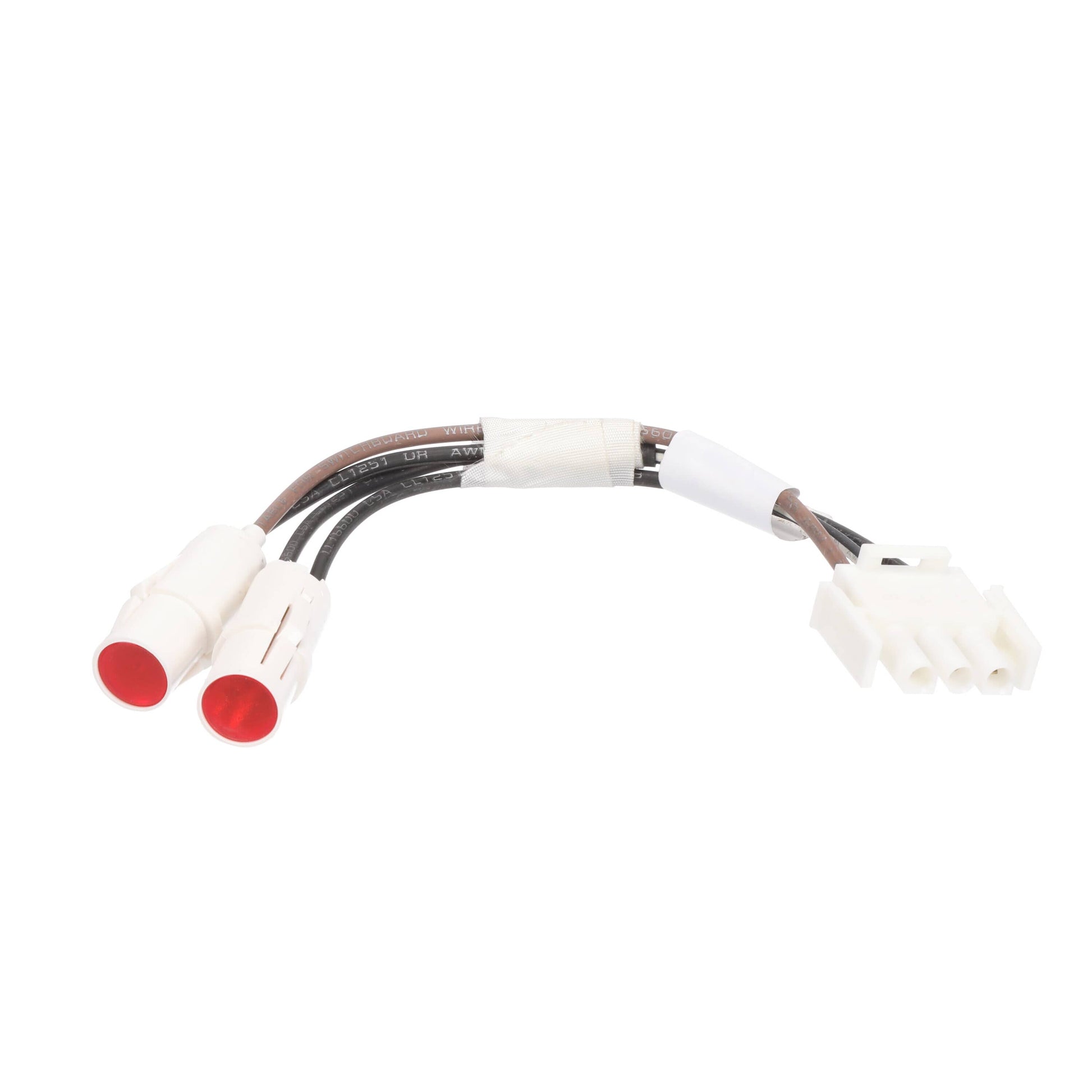

Whirlpool W11190477 Range Wire Harness - Genuine OEM

Name: Whirlpool W11190477 Range Wire Harness - Genuine OEM
Brand: Whirlpool
SKU: W11190477
Price: 33.56 USD
Availability: OutOfStock

Whirlpool W11190477 Range Wire Harness - Genuine OEM

$33.56 USD

~~$54.74 USD~~ $33.56 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock See the replacement number

Fit checked against the maker’s own model list
Genuine OEM part, one-year warranty
365-day returns, unopened and in the original box
Ships from a U.S. warehouse, tracked

Also known by these numbers

If your old part carries any of these, this is the one you want.

W11190477
5175P377-60
74007807

Whirlpool W11190477 is a wire harness for range appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. It should read W11190477.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
30 day returns — unused and uninstalled, in the original box.
Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: W11190477, 5175P377-60, 74007807.

Models this part fits

21 models

Fits: CEC1430AAB, CEC1430AAC, CEC1430AAQ, CEC1430AAW, JEC7430AAB, JEC7430AAW, LEC1330AAB, LEC1330AAC, LEC1330AAW, MEC4430AAB14, MEC4430AAQ, MEC4430AAW14, MEC4430ACW14, MEC4430WB00, MEC4430WB01, MEC4430WW00, MEC4430WW01, WCC31430AB02, WCC31430AB03, WCC31430AW02, WCC31430AW03.

Also fits these brands

Magic Chef
Whirlpool
Maytag
JennAir
Admiral

View full details

Model cross reference

This part W11190477 works with all 21 models listed, all of them ranges.

Does this fit my appliance? Need help finding your model number?

Model number	Manufacturer	Appliance type
CEC1430AAB	Magic Chef	Range
CEC1430AAC	Magic Chef	Range
CEC1430AAQ	Whirlpool	Range
CEC1430AAW	Whirlpool	Range
JEC7430AAB	JennAir	Range
JEC7430AAW	JennAir	Range
LEC1330AAB	Admiral	Range
LEC1330AAC	Whirlpool	Range
LEC1330AAW	Admiral	Range
MEC4430AAB14	Maytag	Range
MEC4430AAQ	Maytag	Range
MEC4430AAW14	Maytag	Range
MEC4430ACW14	Maytag	Range
MEC4430WB00	Maytag	Range
MEC4430WB01	Maytag	Range
MEC4430WW00	Maytag	Range
MEC4430WW01	Maytag	Range
WCC31430AB02	Whirlpool	Range
WCC31430AB03	Whirlpool	Range
WCC31430AW02	Whirlpool	Range
WCC31430AW03	Whirlpool	Range
