Genuine OEM·Whirlpool

W11224256Replaces 1 older number

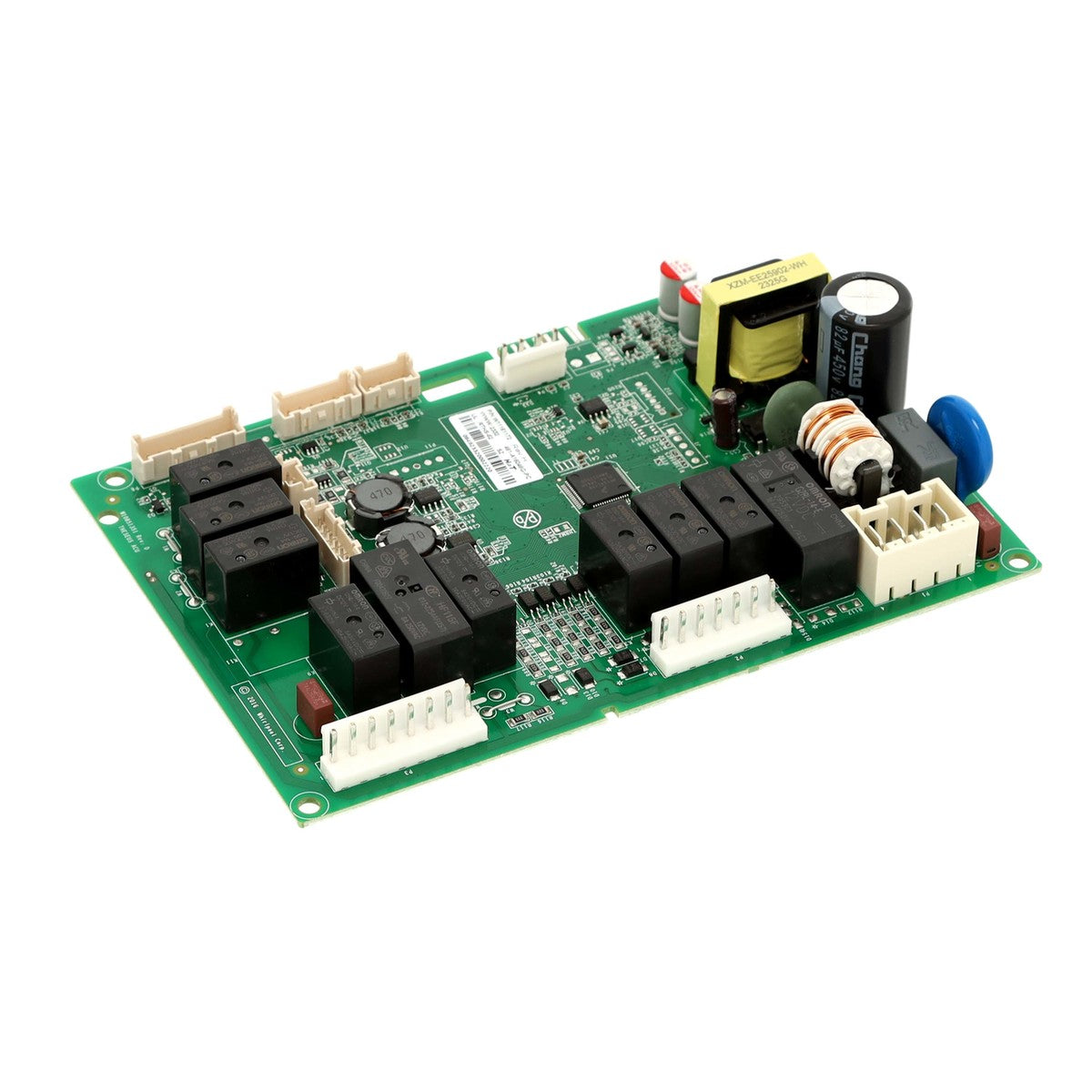

Whirlpool W11224256 Refrigerator Main Control Board - Genuine OEM

Whirlpool W11224256 Refrigerator Main Control Board - Genuine OEM

$277.81 USD
$315.68 USD $277.81 USD
Sale Sold out
Shipping calculated at checkout.
Available to order Ships on the next business day
Electrical part — check it before you install Opening the box and holding the part against the old one does not affect your return. Once it has been installed, plugged in or tested — or the sealed anti-static bag opened — it can no longer be returned. Not sure it is the right one? Ask us first and we check it against your model and serial number the same day. Return terms
  • Fit checked against the maker’s own model list
  • Genuine OEM part, one-year warranty
  • 365-day returns, unused and in the original box
  • Ships from a U.S. warehouse, tracked
Also known by these numbers

If your old part carries any of these, this is the one you want.

  • W11161172

Whirlpool W11224256 is a main control board for refrigerator appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. If it says W11224256, or the older number listed under Compatible parts below, this is the replacement. Every one of them is discontinued and every one leads here.

Shipping box

Weight and size of the parcel as it ships: 0.64 lb · 7.2834, 4.2125, 2.559 in. These are the carton, not the part — do not measure your old part against them.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

  • One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
  • 30 day returns — unused and uninstalled, in the original box.
  • Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: W11161172.

Models this part fits

42 models

Fits: KRFF507HBL00, KRFF507HBS00, KRFF507HBS02, KRFF507HBS03, KRFF507HBS04, KRFF507HPS00, KRFF507HPS01, KRFF507HPS02, KRFF507HPS03, KRFF507HPS04, KRFF507HWH00, KRFF507HWH02, KRFF507HWH03, KRFF577KBS01, KRFF577KBS02, KRFF577KPS01, KRFF577KPS02, KRFF577KPS03, MFT2772HEZ00, MFT2772HEZ01, MFT2772HEZ02, MFT2772HEZ03, MFT2772HEZ04, WRF757SDHV00, WRF757SDHV02, WRF757SDHV03, WRF757SDHV04, WRF757SDHZ00, WRF757SDHZ01, WRF757SDHZ02, WRF757SDHZ03, WRF757SDHZ04, WRF757SDHZ05, WRF767SDHV00, WRF767SDHV02, WRF767SDHV03, WRF767SDHV04, WRF767SDHZ00, WRF767SDHZ01, WRF767SDHZ02, WRF767SDHZ03, WRF767SDHZ04.

Also fits these brands

  • KitchenAid
  • Whirlpool
  • Maytag
View full details

Model cross reference

This part W11224256 works with all 42 models listed, all of them refrigerators.

Need help finding your model number?
Model number ManufacturerAppliance type
KRFF507HBL00 WhirlpoolRefrigerator
KRFF507HBS00 WhirlpoolRefrigerator
KRFF507HBS02 WhirlpoolRefrigerator
KRFF507HBS03 WhirlpoolRefrigerator
KRFF507HBS04 KitchenAidRefrigerator
KRFF507HPS00 WhirlpoolRefrigerator
KRFF507HPS01 KitchenAidRefrigerator
KRFF507HPS02 WhirlpoolRefrigerator
KRFF507HPS03 KitchenAidRefrigerator
KRFF507HPS04 WhirlpoolRefrigerator
KRFF507HWH00 WhirlpoolRefrigerator
KRFF507HWH02 WhirlpoolRefrigerator
KRFF507HWH03 KitchenAidRefrigerator
KRFF577KBS01 KitchenAidRefrigerator
KRFF577KBS02 KitchenAidRefrigerator
KRFF577KPS01 KitchenAidRefrigerator
KRFF577KPS02 WhirlpoolRefrigerator
KRFF577KPS03 WhirlpoolRefrigerator
MFT2772HEZ00 MaytagRefrigerator
MFT2772HEZ01 MaytagRefrigerator
MFT2772HEZ02 WhirlpoolRefrigerator
MFT2772HEZ03 MaytagRefrigerator
MFT2772HEZ04 WhirlpoolRefrigerator
WRF757SDHV00 WhirlpoolRefrigerator
WRF757SDHV02 WhirlpoolRefrigerator
WRF757SDHV03 WhirlpoolRefrigerator
WRF757SDHV04 WhirlpoolRefrigerator
WRF757SDHZ00 WhirlpoolRefrigerator
WRF757SDHZ01 WhirlpoolRefrigerator
WRF757SDHZ02 WhirlpoolRefrigerator
WRF757SDHZ03 WhirlpoolRefrigerator
WRF757SDHZ04 WhirlpoolRefrigerator
WRF757SDHZ05 WhirlpoolRefrigerator
WRF767SDHV00 WhirlpoolRefrigerator
WRF767SDHV02 WhirlpoolRefrigerator
WRF767SDHV03 WhirlpoolRefrigerator
WRF767SDHV04 WhirlpoolRefrigerator
WRF767SDHZ00 WhirlpoolRefrigerator
WRF767SDHZ01 WhirlpoolRefrigerator
WRF767SDHZ02 WhirlpoolRefrigerator
WRF767SDHZ03 WhirlpoolRefrigerator
WRF767SDHZ04 WhirlpoolRefrigerator
