Genuine OEM·Whirlpool

W11615506Replaces 1 older number

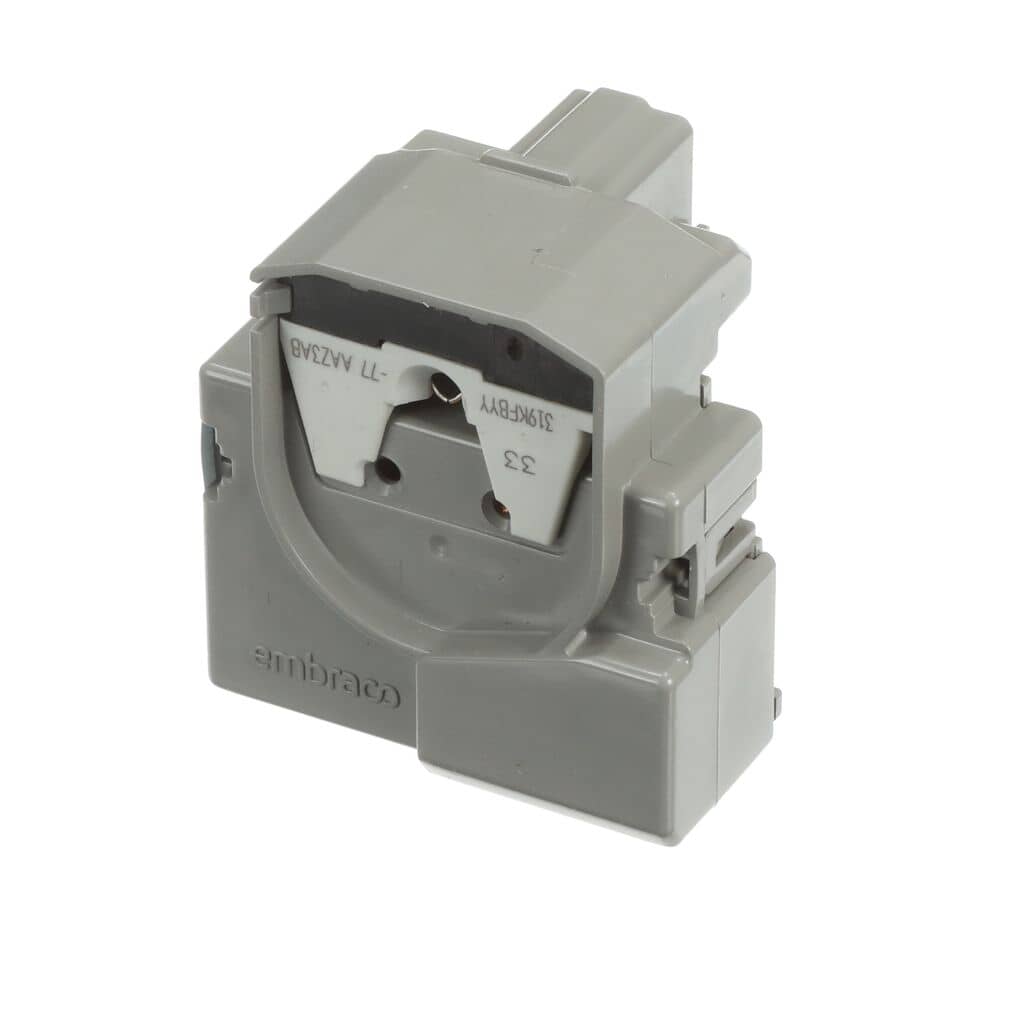

Whirlpool W11615506 Start Relay & Overload Device - Genuine OEM

Whirlpool W11615506 Start Relay & Overload Device - Genuine OEM

$29.93 USD
$43.88 USD $29.93 USD
Sale Sold out
Shipping calculated at checkout.
Available to order Ships on the next business day
Electrical part — check it before you install Opening the box and holding the part against the old one does not affect your return. Once it has been installed, plugged in or tested — or the sealed anti-static bag opened — it can no longer be returned. Not sure it is the right one? Ask us first and we check it against your model and serial number the same day. Return terms
  • Fit checked against the maker’s own model list
  • Genuine OEM part, one-year warranty
  • 365-day returns, unused and in the original box
  • Ships from a U.S. warehouse, tracked
Also known by these numbers

If your old part carries any of these, this is the one you want.

  • W11541370

Whirlpool W11615506 is a start relay & overload device for refrigerator appliances. New, genuine Whirlpool OEM — ordered from the brand's own distributor, not an aftermarket copy.

Read the number off your old part

Look for the number stamped or printed on the part itself. If it says W11615506, or the older number listed under Compatible parts below, this is the replacement. Every one of them is discontinued and every one leads here.

Shipping box

Weight and size of the parcel as it ships: 0.18 lb · 4.685, 4.4881, 3.5433 in. These are the carton, not the part — do not measure your old part against them.

Does it fit yours?

Enter your model number in the box above for a straight answer, or read the full list under Compatible models below. Send us the number and we will confirm it before you order.

Buying from us

  • One year warranty, backed by FIXIT PARTS — if it fails in the first year we replace it.
  • 30 day returns — unused and uninstalled, in the original box.
  • Ships the same business day on orders placed before 12:00 PM Pacific.

Part numbers on this page

Manufacturer numbers: W11541370.

Models this part fits

22 models

Fits: ARTX3028PB00, ARTX3028PW00, KRFF507HBS04, KRFF507HPS04, KRFF577KBS05, KRFF577KBS06, KRFF577KPS05, KRFF577KPS06, MFT2772HEZ07, MFT2772HEZ08, WRF757SDHV04, WRF757SDHV07, WRF757SDHZ04, WRF757SDHZ07, WRF767SDHV04, WRF767SDHV07, WRF767SDHZ04, WRF767SDHZ07, WRT148FZDM08, WRTX5028PB00, WRTX5028PM00, WRTX5028PW00.

Also fits these brands

  • Whirlpool
  • Maytag
  • KitchenAid
  • Amana
View full details

Model cross reference

This part W11615506 works with all 22 models listed, all of them refrigerators.

Need help finding your model number?
Model number ManufacturerAppliance type
ARTX3028PB00 WhirlpoolRefrigerator
ARTX3028PW00 AmanaRefrigerator
KRFF507HBS04 KitchenAidRefrigerator
KRFF507HPS04 WhirlpoolRefrigerator
KRFF577KBS05 KitchenAidRefrigerator
KRFF577KBS06 KitchenAidRefrigerator
KRFF577KPS05 KitchenAidRefrigerator
KRFF577KPS06 KitchenAidRefrigerator
MFT2772HEZ07 MaytagRefrigerator
MFT2772HEZ08 MaytagRefrigerator
WRF757SDHV04 WhirlpoolRefrigerator
WRF757SDHV07 WhirlpoolRefrigerator
WRF757SDHZ04 WhirlpoolRefrigerator
WRF757SDHZ07 WhirlpoolRefrigerator
WRF767SDHV04 WhirlpoolRefrigerator
WRF767SDHV07 WhirlpoolRefrigerator
WRF767SDHZ04 WhirlpoolRefrigerator
WRF767SDHZ07 WhirlpoolRefrigerator
WRT148FZDM08 WhirlpoolRefrigerator
WRTX5028PB00 WhirlpoolRefrigerator
WRTX5028PM00 WhirlpoolRefrigerator
WRTX5028PW00 WhirlpoolRefrigerator
